Modular Access Platform Safety System

Stairwell Void Cover And Hatch

Quick and easy to install

Unique Patented flush fitting design and telescopic joists

Rigorously tested for loads up to 2.5kN/m2

Fast, reliable nationwide delivery

Request A Quote

For technical enquiries or to request a quotation, contact a member of our sales team on 01606 834 630 or office@gmsafedeck.co.uk.

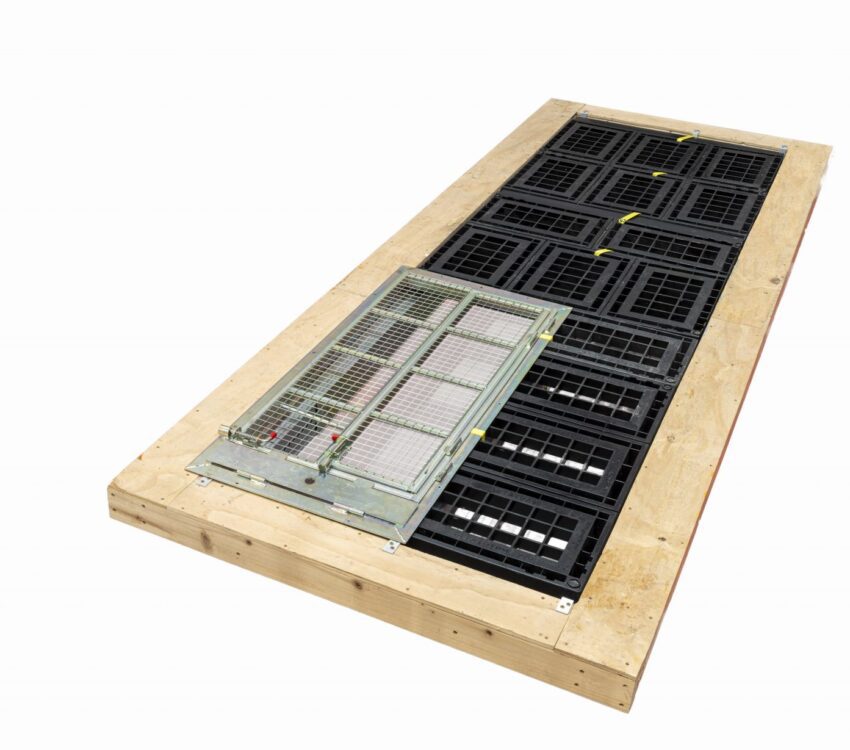

Strong, Stable Platform over Stair Voids

The G & M M.A.P Safety System is a modular access platform designed to offer a flush cover platform over various size voids to prevent falls whilst providing full or partial access for operatives and materials.

Suitable for use in a wide range of construction environments.

stair well hatch & void cover Logo

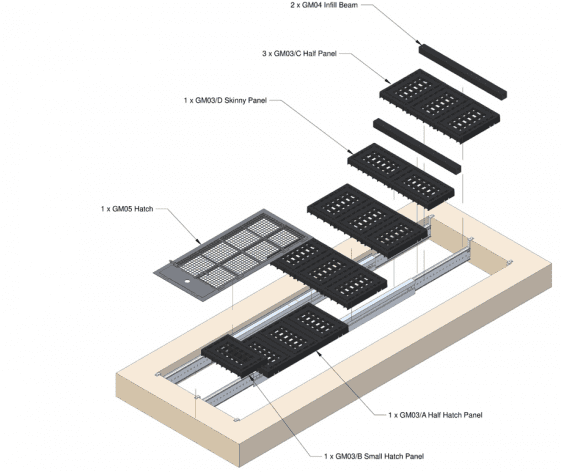

stair well void cover design

Unique and Innovative Design

Researched and developed by The G&M Group, The M.A.P Safety System boasts  a range of unique design features, including:

  • Flush fitting design mitigating risk of trip hazards

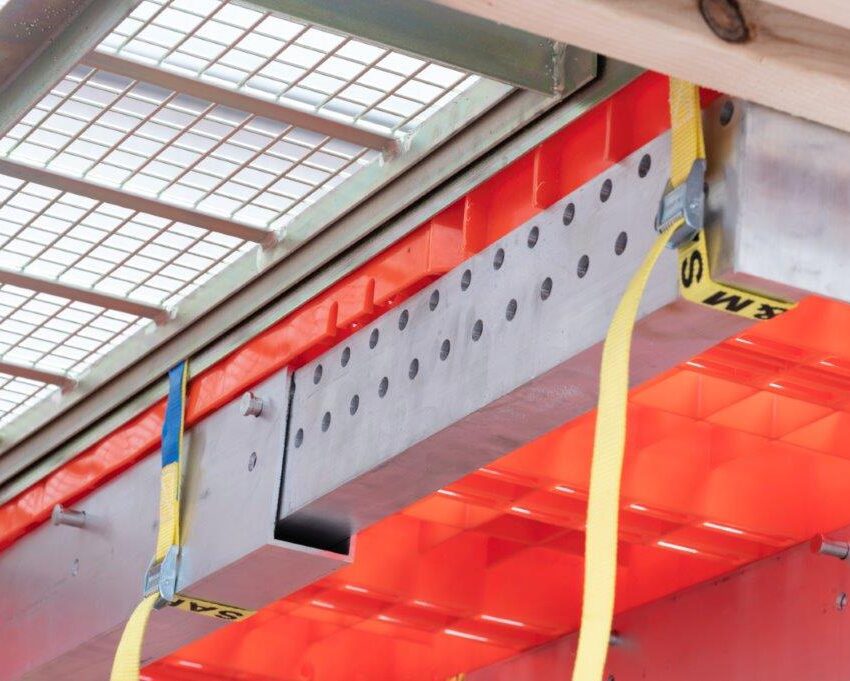

  • Unique Patent telescopic joists that are fixed in place to support the panels
  • Secure fixings to prevent accidental dislodgement or removal

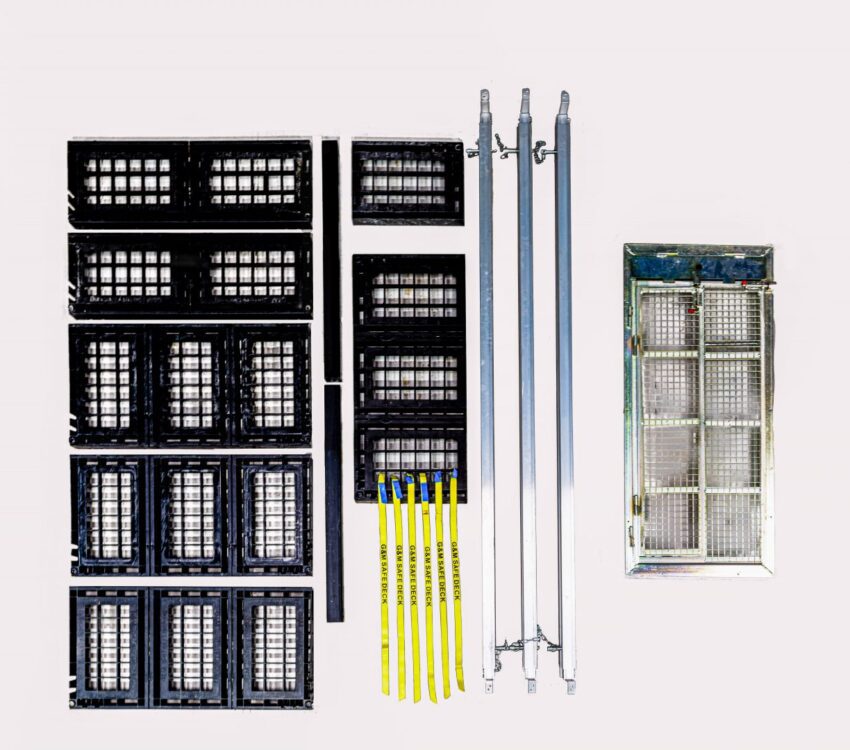

  • Lightweight modular design for quick and easy installation

Highly versatile safety solution

The system can be used in stairwells ranging from 2 – 4 meters in length and of any width. It is also suitable for use in L-shaped stairwells. Openings next to party walls are no problem and the System allows full or partial access for both operatives and materials.

The M.A.P Safety System is installed at the earliest stages of construction; directly after the joists or other load bearing members have been fitted. What’s more, our system can be used in conjunction with ladders or temporary stairs.

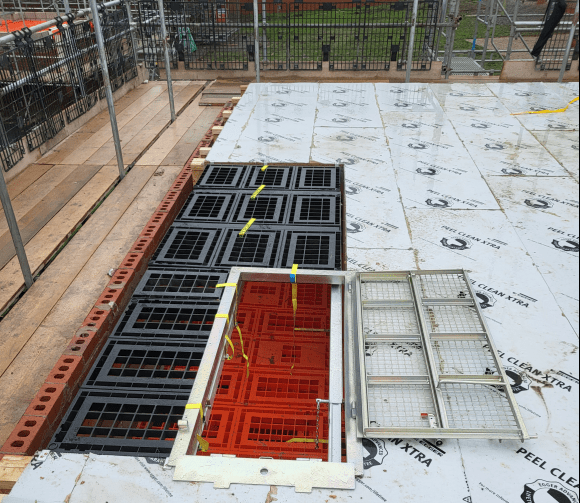

stair well void cover and hatch
stair well void hatch & cover

Easy to install

If you’re looking for a stairwell hatch that is quick and easy to install, The M.A.P Safety System is the perfect choice.

It’s lightweight, modular design means that it can be installed with ease by one person in approximately 10 minutes making it much more cost-effective compared to installing sacrificial joists and flooring over stairwell voids.

Rigorously tested

The UK manufactured G&M stairwell hatch has undergone rigorous testing by Lucidean testing house and exceeds Health & Safety Executive standards.

The M.A.P Safety System can be loaded to a maximum of 2.5kN/m2.

stair well void hatch

Request A Quote

For technical enquiries or to request a quotation, contact a member of our sales team on 01606 834 630 or office@gmsafedeck.co.uk.



FAQs

Can safety deck be loaded?

G&M Safe Deck has undergone rigorous testing by Lucideon (formerly CERAM – a UKAS accredited testing (0013) and calibration. (0420) UK laboratory) and can be loaded to 2.0kN/m2.

The safety decking panel has been successfully tested for:

  • Uniformly distributed load (UDL) to serviceability load
  • Soft body impact tests in accordance with ACR(M)001:2000 Test for Fragility of Roofing Assemblies
  • Point loads over several test positions through a 100mm x 100mm spreader plate

For more information on G&M Safe Deck’s load testing methodology and data, download our product information sheet here <Link. To G&M Safe Deck – Product Range Testing Data & Information. PDF>.

What is the life span of G&M Safe Deck?

The G&M Safe Deck System has a proven life expectancy of at least 10 years. This has been proven by testing panels taken from our contracting stock that are 10 years old. The testing was successful and the old panels performed as well as a new one would. G&M Safe Deck is by far the most rigorously tested plastic system available on the market anywhere in the world.

How much does GM Safe Deck weigh?

G&M Safe Deck has been designed to be lightweight as well as strong. A full size panel weighs 10.43 kg.

Can G&M Safe Deck be manufactured in different colours?

Yes, we can manufacture the Safe Deck panel components in any colour to meet your requirements. We can also brand the panels with your company logo and contact details for buying customers, enabling you to promote your company whilst on site. Simply discuss your colour and branding requirements with a member of our sales team.

Can a scaffold tube be built through the Safe Deck system?

G&M Safe Deck’s unique design allows a tube or scaffold to be built through any part of the panels making is flexible and quick to install on site.

Why is safety decking important in construction?

Safety decking is beneficial in a construction project for a multitude of reasons. Its primary function is to safeguard the well-being of construction workers, mitigating the risks associated with working at heights. Here are several key reasons why safety decking is beneficial:

  • First and foremost, safety decking provides a secure platform for workers to perform tasks at elevated levels. This reduces the likelihood of accidents, such as falls from heights, which can result in severe injuries or fatalities. By creating a stable working surface, safety decking minimizes these risks, ensuring that workers can focus on their tasks with confidence.
  • Furthermore, safety decking enhances overall productivity on construction sites. With a reliable and safe platform in place, workers can efficiently carry out their duties, saving time and resources. This translates into cost savings for construction projects and helps meet deadlines more effectively.
  • In addition to protecting workers and improving efficiency, safety decking also minimizes damage to the building being constructed. It acts as a buffer, preventing tools, materials, or debris from falling to lower levels, thereby reducing the potential for structural damage and ensuring the quality of the final product.
